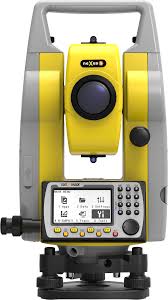

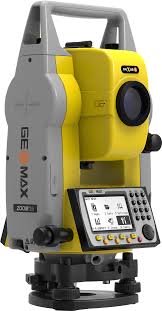

          Geomax Total Station Zoom 25"


          Product Description:
          		Technical Specification:
          The enhanced design of Zoom25 protects the instrument against dust and water jets from any direction even under low temperatures down to -30°C. A fast, simple and flexible data transfer is ensured by the incorporated RS232, USB and Bluetooth ® technology.

          • Zoom25neXus  :  Distance measurement on prism

          • Zoom25neXus  :  Distance measurement on reflector and 500m non-prism*

          Angel Measurements

          • Accuracy  :  1” (0.3 mgon), 2” (0.6 mgon), 5” (1.5 mgon)

          • Display resolution  :  0.1” , 1", 5", 10"

          • Method  :  Absolute, continuous, diametrical

          • Compensation  :  Quadruple axis

          Distance Measurements

          • Prism  : Range to single prism

            3500 m / 2 mm + 2 ppm

          • Non-prism  : Range :

            500m / 2 mm + 2 ppm

          • Footprint  :  8 x 20 mm @50m

          Phyaical Specifications

          • Weight  :  5.1 kg (incl. battery & tribrach)

          • Operating temp   :   30°C to 50°C*****

          • Protection class  :  IP55 dust and waterproof

          • Humidity  :  95 %, non-condensing

          Interface

          • Keyboard  :  Full alphanumeric, dual face (opt.)

          • Display  :  High resolution (280x160 pixel), 8 lines x 30 characters, illuminated, heading

          • Data recording   :   Internal memory 50,000 pts

          • Removable memory  :  USB stick

          • Bluetooth®  :  Yes

          Power Supply

          • Typle/ Operating time  : 16hours

          Plummet

          • Type  :  Laser point, adjustable brightness
