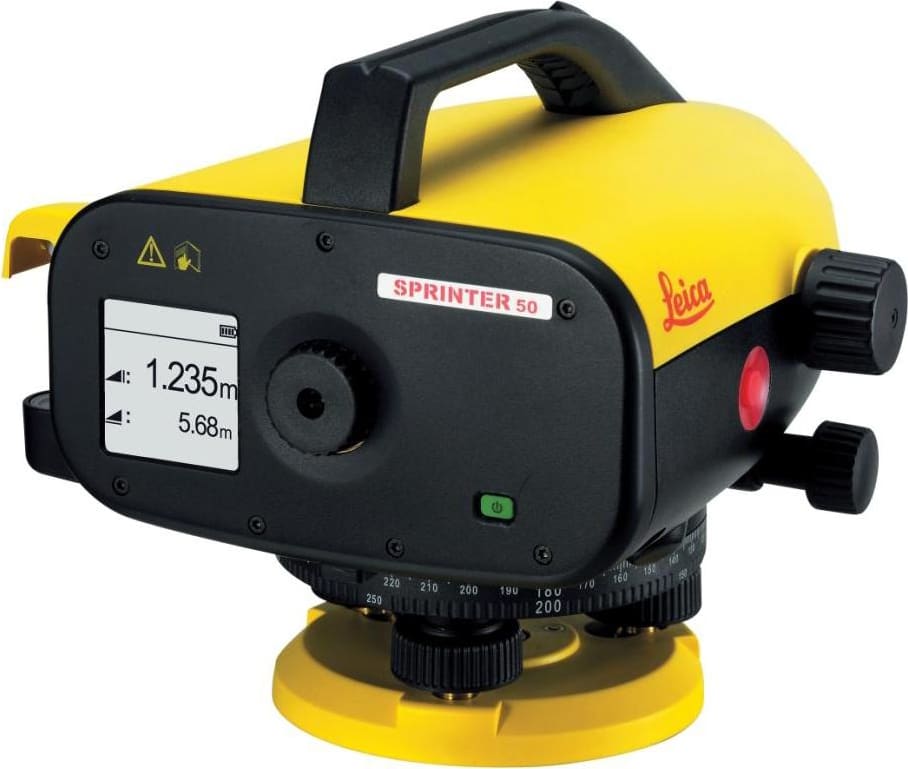

Leica Digital Level Sprinter 50

    0.00 0.00 0.0 USD

    0.00

    This combination does not exist.

    Add to Cart


    Terms and Conditions
    Payment upon order confirmation
    Delivery in 1 Business Day


    Brand: Leica Geosystems
    Product Code: 762628

    Leica Sprinter 50 Offers


    Product Description:
    Technical Specification:

    Features

    • Dust and Waterproof
    • Compact and lightweight design
    • Error-free height and distance results
    • Out of level indication
    • Compact and lightweight design
    • Single button operation - Aim, push the button and read

    Easy Handling

    Improve the quality of your daily measuring tasks. Get the results simply by the push of a button. The one-button level is easy to use also without specific instructions or trainings. Glaring sun shine or rain does not stop the Leica Sprinter 50 as it is dust and jet-water protected (protection class IP 55). The results can be read-out from the highly visible LCD even in unfavorable light conditions.

    Reliable and Error Free Measurements

    Avoiding expensive measuring errors can save you a lot of money. The build-in tilt sensor of the Leica Sprinter 50 prevents the system from measuring if you operate outside the compensator range. Due to this safety check, you can be sure to get always accurate results.

    Applications

    • Building and civil engineering
    • Landscaping
    • Architecture
    Height accuraciesStandard devation height measurement per 1 km double run (ISO 17123-2)
    Electronic measurement2.0 mm
    Optical measurementWith standard aluminum E-scale/Numeral staff: 2.5 mm
    Single staff readingStandard Deviation: 0.6 mm (electronic) and 1.2 mm (optical) at 30m
    Distance accuraciesStandard deviation distance measurement 10 mm for D ≤ 10 m and (Distance in m x 0.001) for D > 10 m
    Range2 - 100 m (electronic)
    Measuring modesSingle and Tracking
    Time for single measurement< 3 sec
    CompensatorMagnet damped pendulum compensator (range +/- 10 min)
    TelescopeMagnification (optical) 24x
    Data storageUp to 2'000 points (only 150M)
    Environmental conditionsIP55
    Power SupplyAA dry cells (4 x LR6/AA/AM3 1.5 V)
    Weight<2.5 kg
